टेलिस्कोपिक कवर

उत्पाद वर्णन

Telescopic Steel Covers are an important part of a machine tool to increase the runtime. The using of it makes possible perfect protection of the Guide-way, Balls-screw, etc. against mechanical influences like chips or chemical influences like coolants. Made from 1mm to 5mm thickness sheet of required material like SS,MS. Also provides good protection against accidents.

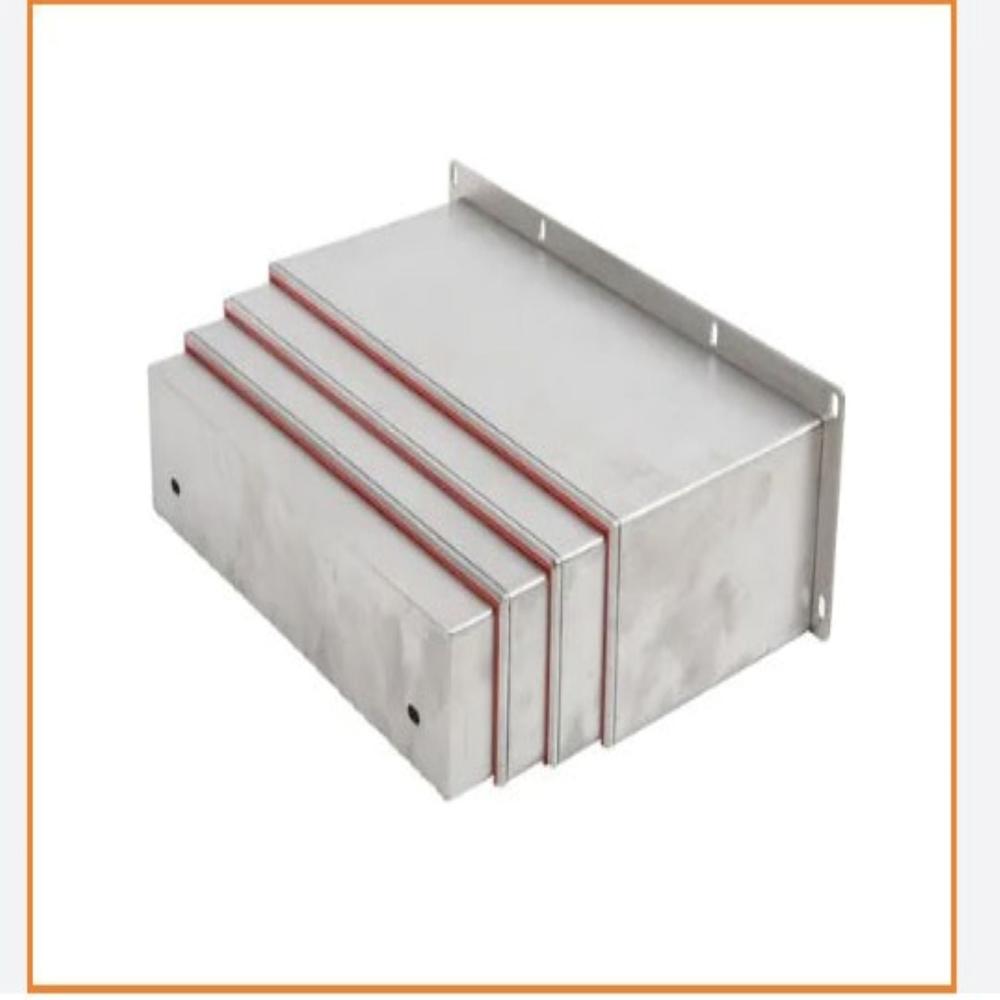

Telescopic Cover

Features:

Material-Mild Steel & Stainless Steel

Applications-

A telescopic cover protects guide-way surfaces and components of moving axis of machines.

We offer:

Types of covers

Standard covers

Fitted with brass sliders or rolling elements, especially with the LP8 or LP12 wiping system, characterized by low resistance and easy replacement
Attenuated energy up to 12J per 1 cover part

Large covers

Covers for high travel rates

Covers for grinders
You will achieve a high quality of ground surface with telescopes with mechanisms for tied movement of the segments.

Covers with minimum installation dimensions

We will find a solution for tightest spaces!

Cover sets, comprehensive systems
Design of the complete covering system of a machine, incl. linking to the machine frame.

Offered telescope material:
in the DC01 design
made of stainless steel
in the telescopic cover + bellows design

Steel telescopic covers

We can custom design or reverse engineer from existing covers. They are designed to be used in environments where slide ways or screws need to be protected from heavy or hot chips and accidental damage from dropped machined components or tools.

Heavy-duty front-edge wipers are fitted to all but the smallest end section to remove swarf and other debris during machine / cover movement. Each section is supported internally by brass or nylon runners or rollers, often used in combination to provide the best solution. Dampeners or buffers can be installed between each section to reduce noise and impact related wear. Control tapes or scissor actions can be fitted to aid uniform opening.

Slide way wiper seals
The service life of steel telescopic covers is usually dependent on the condition of the front-edge wipers. We stock a comprehensive range of wipers for steel telescopic covers, and we can also manufacture way wipers and linear wipers to customer specifications.

The wiper seal or lip is made from hardwearing polyurethane or synthetic rubber and is vulcanized to steel or brass strip, which allows the wiper to be welded, screwed or riveted into place. The seal or lip has high resistance to abrasion, hot swarf (stainless steel can also be supplied), oils, grease and coolants.

Steel telescopic cover refurbishment
Machine Covers Limited offers a complete repair, reverse engineering and fabrication service for all types of steel telescopic covers. Damaged or worn covers are reworked to a like new' condition by repairing or replacing damaged sections, replacing brass side strips, replacing brass or nylon runners or rollers and replacing all front edge wipers. The reworked cover is cleaned, buffed and oiled to an original finish. We are able to produce a new replacement cover using an existing cover that is beyond economical repair as a template.
संपर्क करें for और जानकारीrmation about our refurbishment services.

For all areas of use, in all shapes and installation positions, with or without under-grip

Properties
Telescopic Steel Covers are an important part of a machine tool to increase the runtime. The using of it makes possible:

Materials
We use corrosion protected special plates or high-grade steel wiping and guiding elements are made of cooling resistant and are protected against abrasion.

उत्पाद विवरण:

"We Are Mainly Deals In Maharastra, Gujarat"
