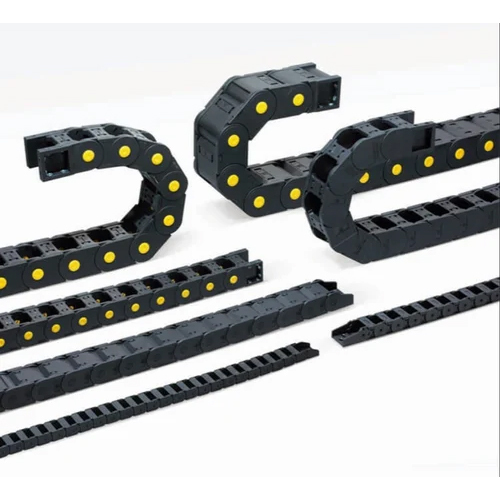

औद्योगिक केबल ड्रैग चेन

उत्पाद वर्णन

"We Are Mainly Deals In Maharastra, Gujarat"

The offered Cable Drag Chain are widely demanded in shipping, packaging and automobile industries for stacking and lifting goods. At our premises, the provided carrier is designed in adherence with predefined quality parameters with the aid of ultra-modern methods under adept supervision. Furthermore, these assortments are widely appreciated for its optimum strength, user-friendly anti-corrosive and easy to fix strong construction. We can customize these Cable Drag Chain for clients in diverse sizes and specifications as per their demands.

Intended to cover power cables and hoses of moving equipment. They are resistant to all liquids and lubricants commonly used in machine tools.

An enclosed carrier of electric cables of galvanized sheet-metal consisting of a supporting profile and steel guiding strip that is connected to one of the four sides of this profile. This enables bending in one direction only, namely the direction of the steel strip. Bending of the profile in the other directions is blocked.

The Codex cable carriers meet technological-safety regulations and comply with the DIN 57113/VDE 0113 standards.

Types

Fixation

At both the ends of the profile flanges are riveted or spot welded that offer several ways of fixation.

Cables and hoses that are freely laid in the profile must be attached to both the ends of the carrier. To ensure maximum possible service life of Codex cables, in case of bigger lengths you must make sure that they are supported or routed in a channel. The length of the channel should at least be equal to half the stroke length. The most suitable fixation point of the cable carrier end is in the middle of the stroke route. This way you will achieve the shortest possible carrier length and lowest price.

When selecting the Codex cable type, consider a 10% reserve for cable . If cables need to be routed separately, you can select a double carrier that is fixed to one guiding strip. Carriers of power leads of steal are 5 mm away from each other.

The bending radii are specified in the dimensional table. If you are in doubt, you can select the nearest possible higher bending radius. If this radius cannot be adapted to the recommended values, you can determine an approximate value of the bending diameter as 8-10 times the outer diameter of the cables.

Advantages

Models of Cable Drag Chain

CF055

CF085

CF115

CF175
